Solution advantages
Universal Roof Compatibility
Customized clamps and installation solutions for tile, metal, and flat concrete roofs, ensuring safe, reliable, and penetration-free installation.
Installation Integrity
Non-penetrating clamps and ballasted systems prevent leakage at the source. Verified through standardized installation and load checks to ensure long-term, safe operation.
Rapid System Deployment
Standardized, modular design enables quick installation of large-format panels. Pre-assembled components minimize on-site labor, streamlining construction and shortening project timelines.
Aesthetic-Integrated Design
Optimizing the form and finish of the mounting structure ensures the solar system integrates seamlessly with the building’s appearance, striking the ideal balance between energy yield and architectural appeal.

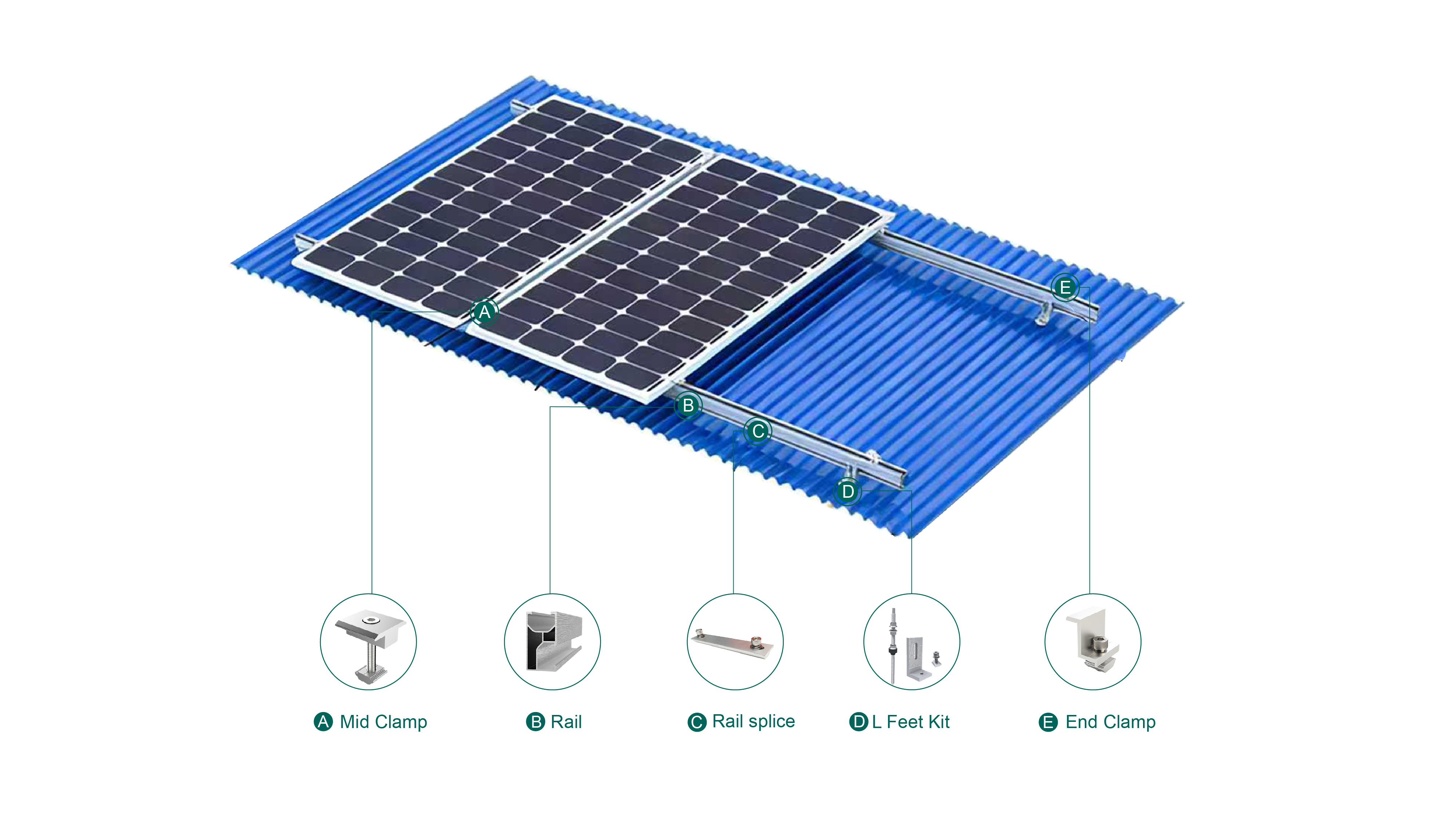

Installation Diagram
Solution Accessories
Parameter | Metal Sheet Roof |
| Tile/Sheet Profile | Corrugated, Trapezoidal, Standing Seam, etc. |
| Roof Slope | Any |
| Installation Plane | Parallel to roof surface, adaptable to any slope |
Mounting Tilt Angle | Fixed (matches roof slope) |
Installation Method | Clamp fixation, non-penetrating |
| Structural Material | Stainless Steel, Aluminum Alloy |
Max. Design Wind Speed | ≥ 150 km/h (Customizable per project) |
| Design Standards | SBC 301 / ASCE 7-22 / AISC 360-16 / BS EN 1991 & 1993 |
